Mastering Drill-Down Reports in Oracle HCM for Better HR Insights

Learn how to master drill-down reports in Oracle HCM Cloud to gain deeper HR insights, improve decision-making, and streamline workforce analytics.

  • Blog
  • Mastering Drill-Down Reports in Oracle HCM for Better HR Insights
Mastering Drill-Down Reports in Oracle HCM for Better HR Insights
Sundar April 24, 2026

Mastering Drill-Down Reports in Oracle HCM for Better HR Insights

Overview

Enterprise HR analytics rarely stop at summary numbers. Decision makers often start with a high-level metric – such as employee counts by Business Unit or Department, and then need to investigate the underlying employee data driving those numbers. Without drill-down capability, this investigation requires switching reports, applying filters manually, and repeating the same analysis steps.

Oracle HCM reporting tools allow this navigation to be automated. By configuring drill-down interactions, a summary report can dynamically open a detailed report already filtered for the selected dimension.

This article demonstrates how to implement drill-down reporting using two commonly used Oracle HCM reporting tools:

  • OTBI (Oracle Transactional Business Intelligence)
  • BI Publisher

The examples below illustrate a practical reporting scenario where users navigate from summary workforce metrics to employee-level data.

Part 1 – OTBI Drill-Down Implementation

Reporting Scenario

The objective is to enable navigation from a Business Unit workforce summary report to an employee detail report filtered automatically for the selected Business Unit.

Workflow:

Business Unit Summary  →  Click Business Unit  →  Employee Detail Report

Prerequisites

Before configuring drill-down interaction, two OTBI reports must already exist.

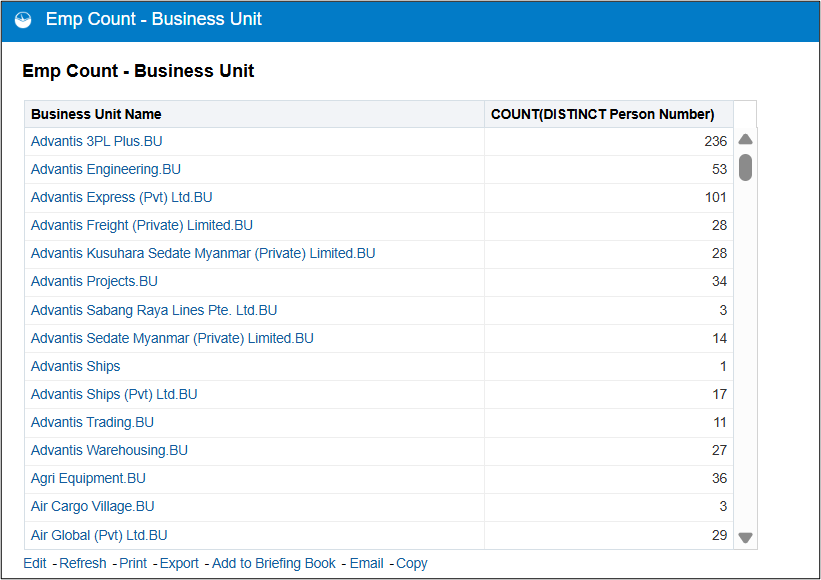

Parent Report – Business Unit Workforce Summary

The parent analysis should contain:

  • Business Unit Name
  • Distinct count of Person Number
  • Filter for Active Employees

Output example:

Business Unit Active Employees
Finance BU 42
Operations BU 67



No interaction or drill-down configuration should be applied at this stage.

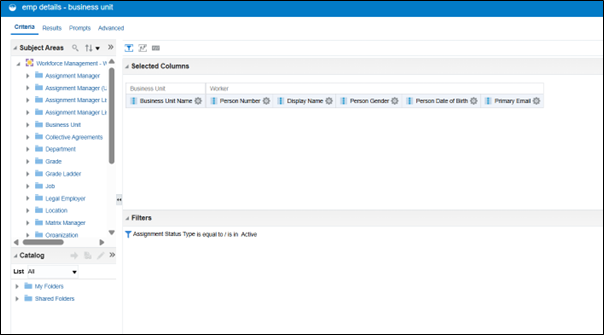

Child Report – Employee Detail Report

The child analysis provides the detailed workforce data.

Typical columns include:

  • Business Unit
  • Person Number
  • Display Name
  • Gender
  • Date of Birth
  • Primary Email

The Business Unit column must exist, because it will be used to dynamically filter the report when navigation occurs.

Step 1 – Configure a Presentation Variable in the Child Report

The child report must be capable of receiving the Business Unit value passed from the parent report.

Procedure

  1. Open the child OTBI analysis in Edit mode.

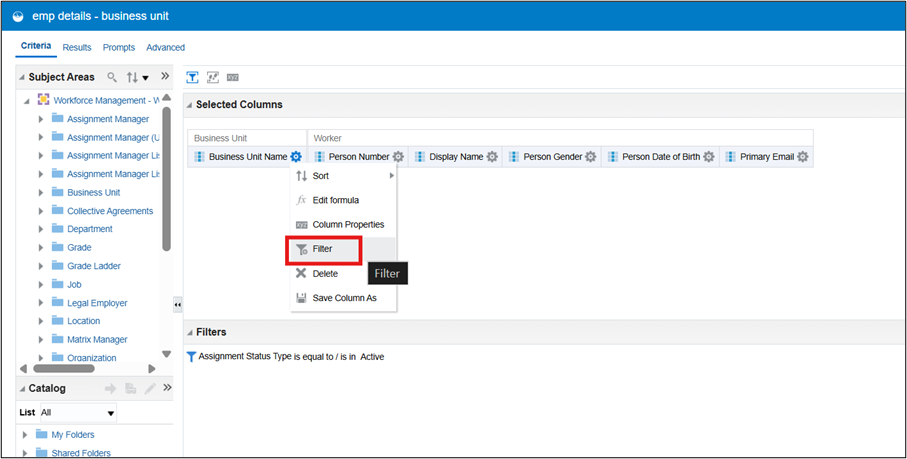

2. Add a filter on Business Unit Name.

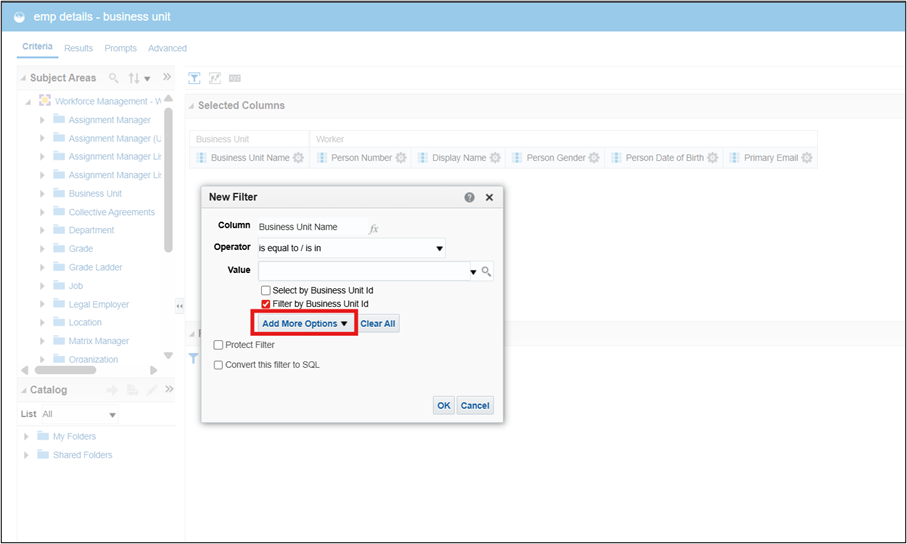

3. Click Add More Options.

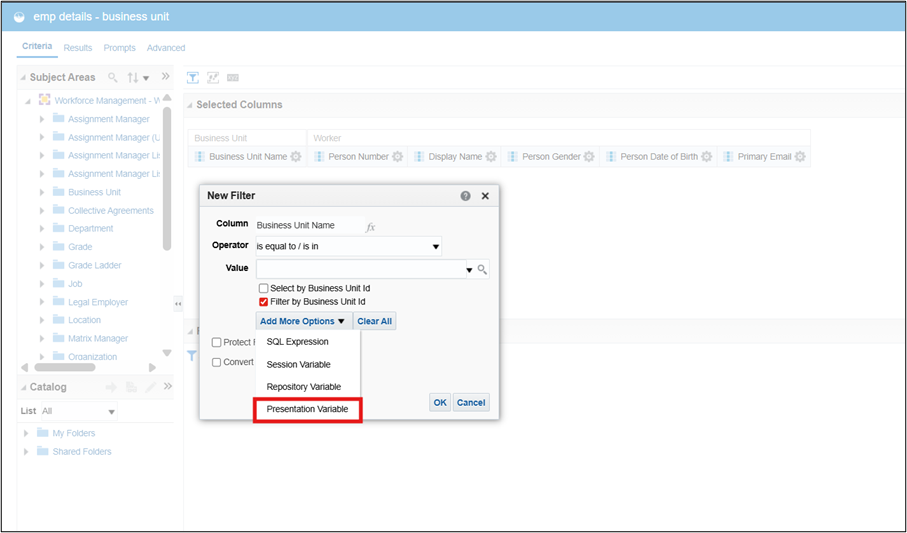

4. Select Presentation Variable.

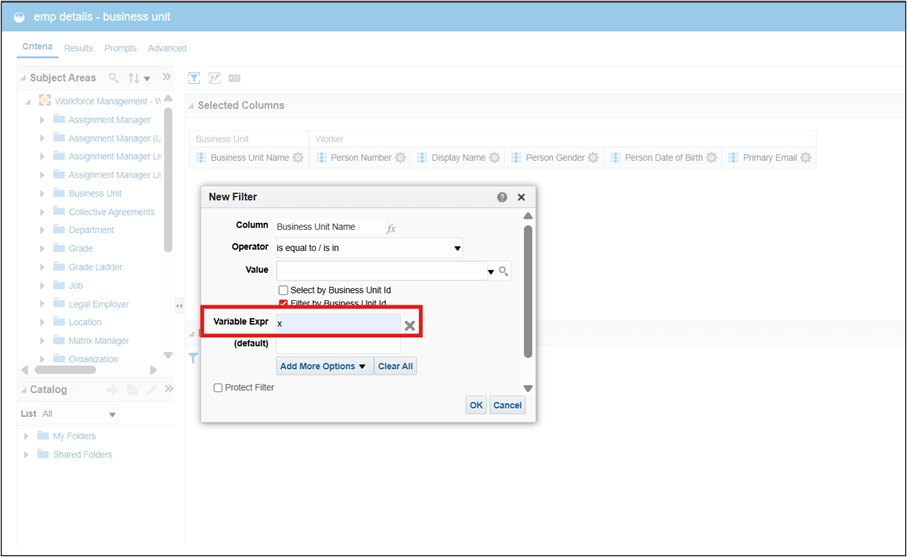

5. Assign a variable name.

Example used in this guide:

‘X’





6. Save the filter.

Result

The child report can now receive the Business Unit value dynamically during drill-down navigation.



Step 2 – Configure Drill-Down Interaction in the Parent Report

The drill-down interaction will be configured on the Business Unit column of the parent report.

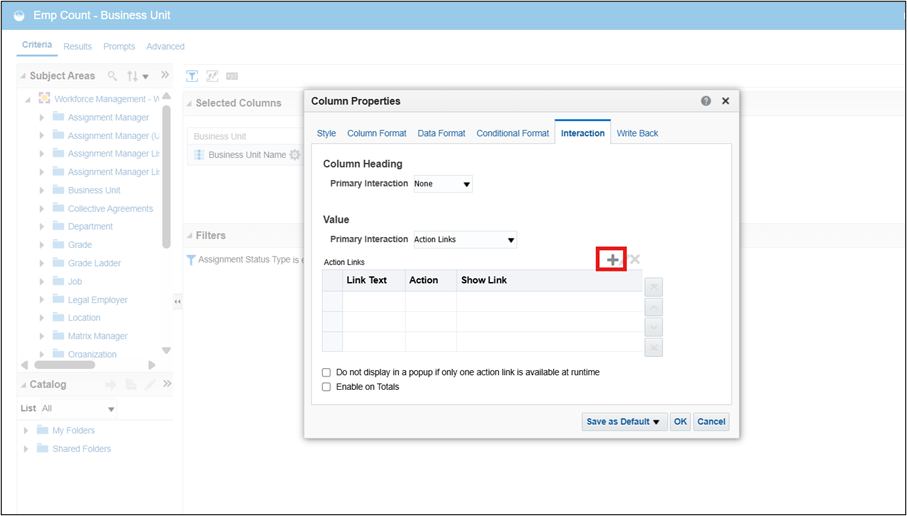

Step 2.1 – Configure Column Interaction

  1. Open the parent OTBI report in Edit mode.

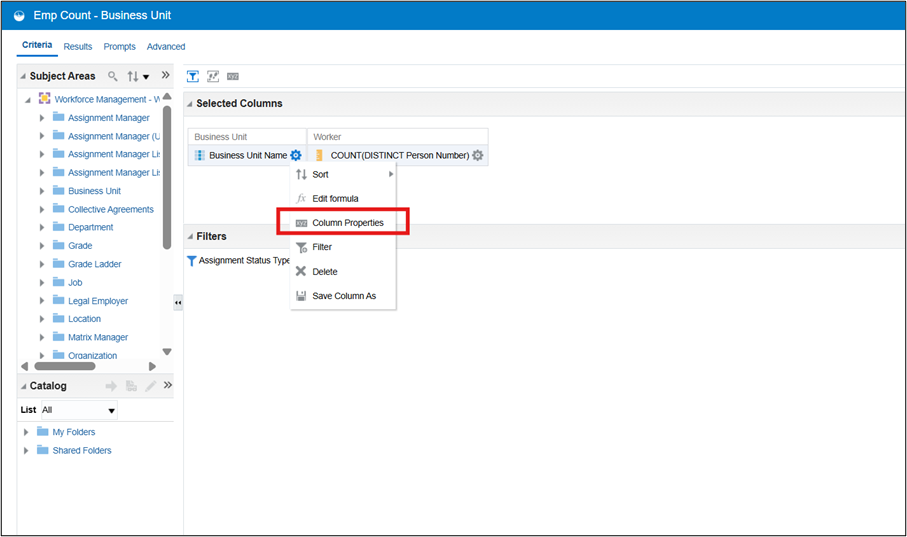

  2. Open Column Properties for the Business Unit Name column.

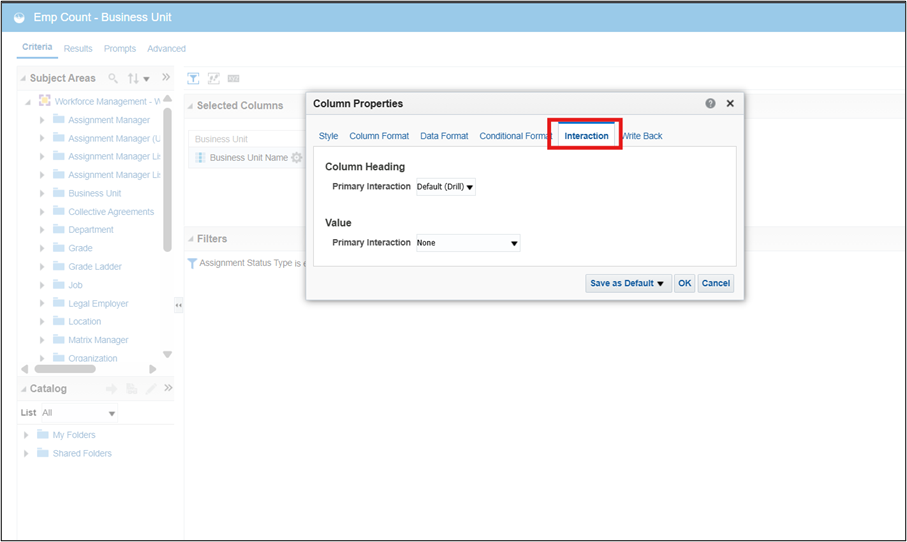

3. Navigate to the Interaction tab.

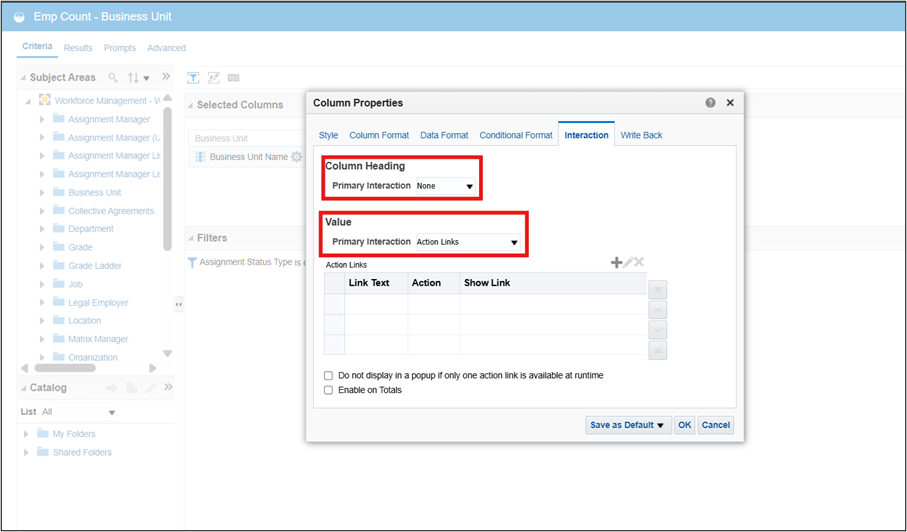

4. Under Column Heading

Set:

Primary Interaction = None

5. Under Value

Select: ‘Action Links’





6. Click Add (+) to create a new action.

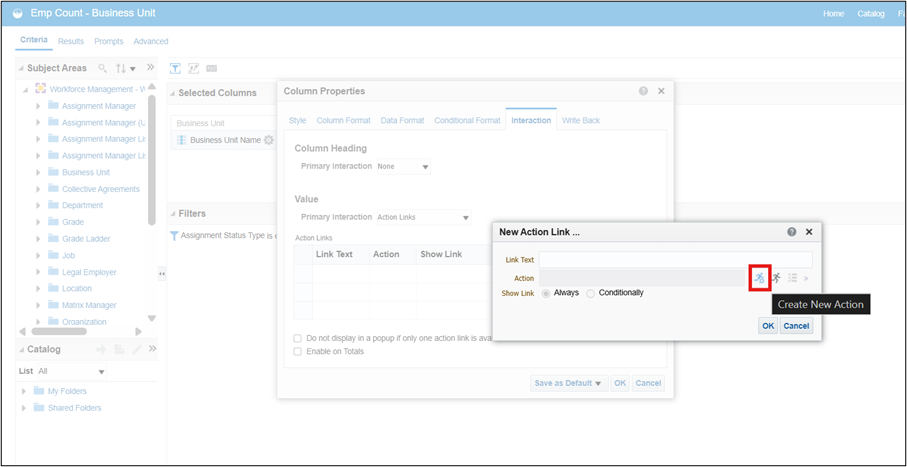

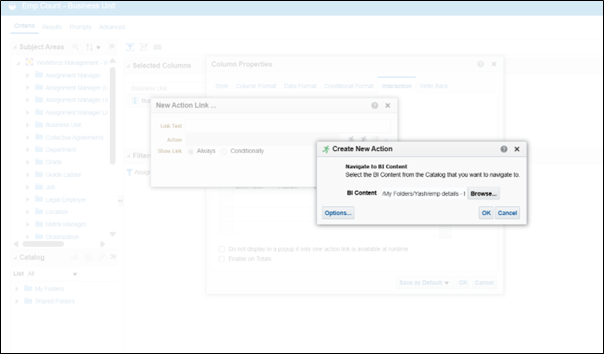

7. Select Create New Action.

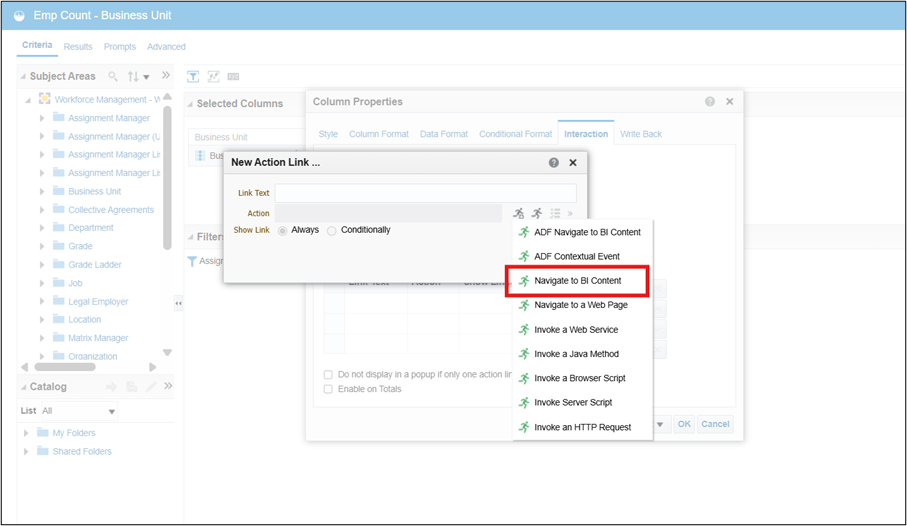

8. Choose Navigate to BI Content.

9.Browse and select the child OTBI report created earlier.

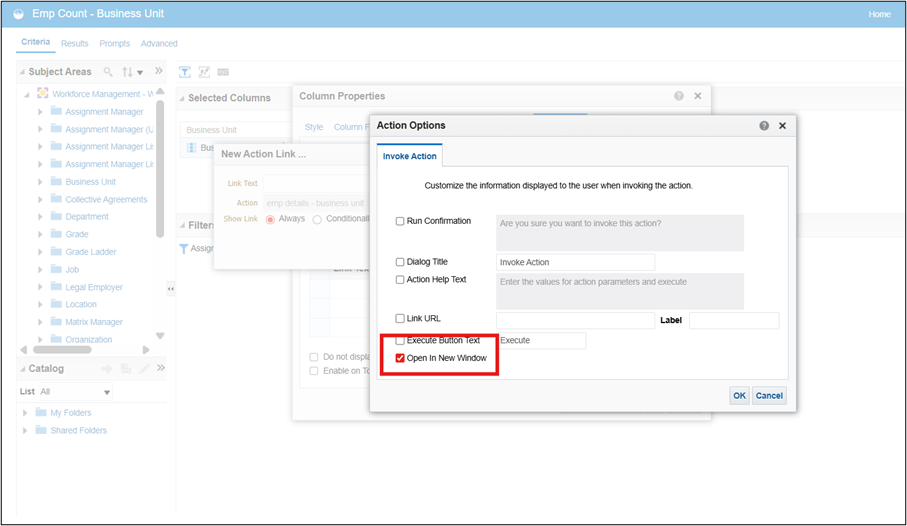

10.Enable: ‘Open in New Window’

11. Save the configuration.

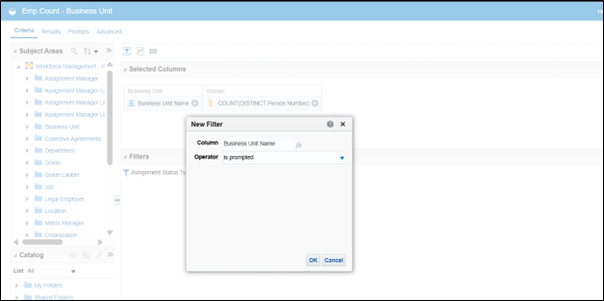

Step 2.2 – Optional Prompt Configuration

To make the report reusable in dashboards or prompted reports, the Business Unit column can also be configured with a prompt.

Steps:

  1. Open the Business Unit column settings.
  2. Add a filter on Business Unit.
  3. Set condition:

Is Prompted

This step is optional but useful when integrating the report with dashboards.



OTBI Drill-Down Result

Once configured, the report behaves as follows:

  1. The parent report displays Business Unit workforce counts.
  2. Clicking a Business Unit triggers navigation.
  3. The employee detail report opens automatically filtered for that Business Unit.

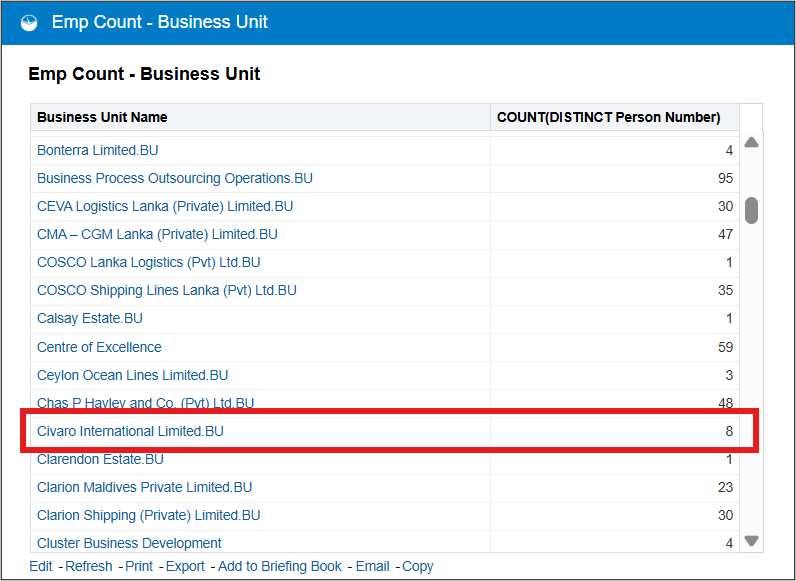

Parent Report

Example:

‘Civaro International Limited BU – 8 Employees’

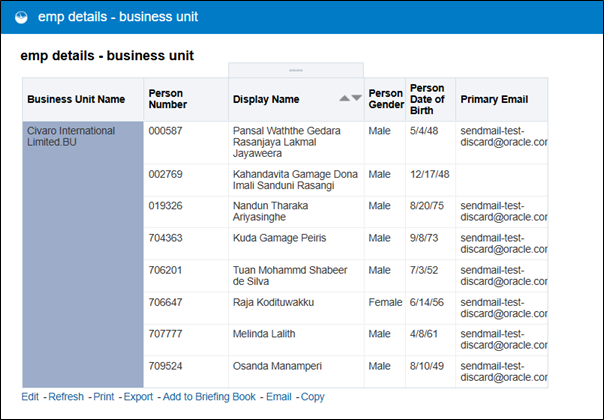

Child Report

The report opens showing only employees belonging to the selected Business Unit.



Part 2 – BI Publisher Drill-Down Implementation



While OTBI drill-down is configured using action links, BI Publisher drill-down uses URL navigation between reports.


Reporting Scenario

Navigate from a Department-wise employee summary report to a detailed employee report filtered by Department.

Workflow:

Department Summary → Click Department → Employee Detail Report

Prerequisites

Two BI Publisher reports must exist.

Parent BI Publisher Report

Contains:

  • Department Name
  • Distinct employee count
  • Active assignment and effective-date SQL filters

Example output:

Department Employees
Sales 18
HR 11



Child BI Publisher Report

The detailed report must include:

  • Employee-level columns
  • A parameter used to receive the department value

Required parameter:

p_dep

The SQL must filter using:

:p_dep

The parameter should be configured as Hidden.

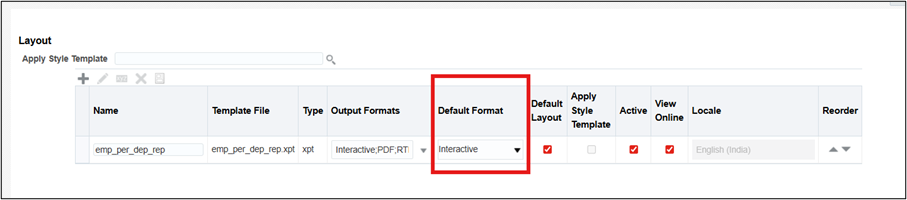

Step 1 – Enable Interactive Output

Drill-down navigation works only when the report output format is interactive.

Procedure

  1. Open the parent report.
  2. Navigate to:

Edit Report → View as List

  1. Set:

Default Output Format = Interactive

  1. Save the report.





Step 2 – Construct the Child Report URL

The parent report must call the child report using a dynamic URL that passes the department value.

URL format:

http://<your_server><port>/xmlpserver/<report_path>/report_name.xdo?<parameter_name>={/Data_set/Group/Column_name_in_parent_report}

Example implementation (In this Case):

https://emdm-test.fa.ap1.oraclecloud.com/xmlpserver/%7Eyash.ingle%40kovaion.com/Yash/emp_details_rep.xdo?p_dep={/DATA_DS/G_1/DEPARTMENT_NAME}

This configuration dynamically passes the Department Name from the parent report to the child report parameter.

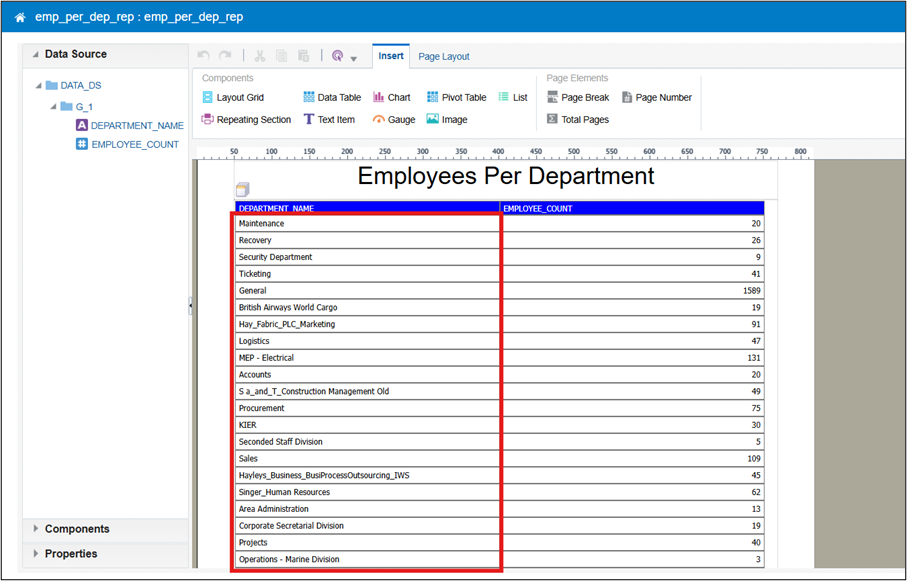

Step 3 – Configure Drill-Down in Parent Layout

  1. Open the parent BI Publisher report.
  2. Click Edit Layout.

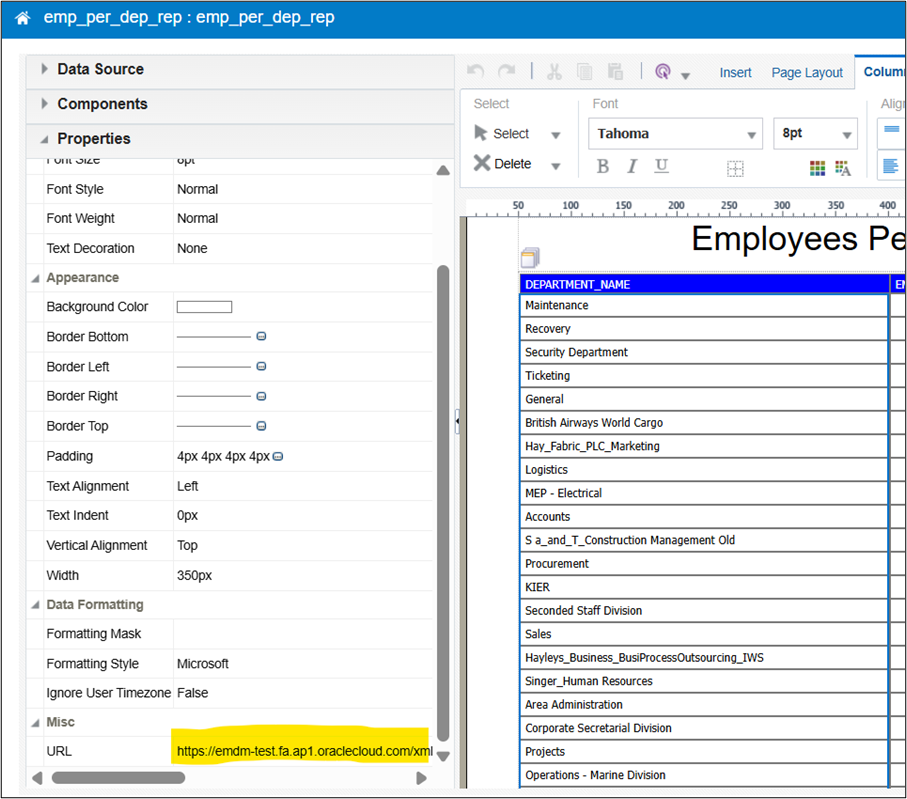

  3. Select the Department Name value cell (not the column header).

  1. Open Properties.
  2. Paste the constructed URL into the URL field.

  1. Save the layout and the report.



BI Publisher Drill-Down Result

Once configured:

  1. The parent report displays department-level employee counts.
  2. Clicking a department launches the detailed employee report.
  3. The child report opens automatically filtered for that department.

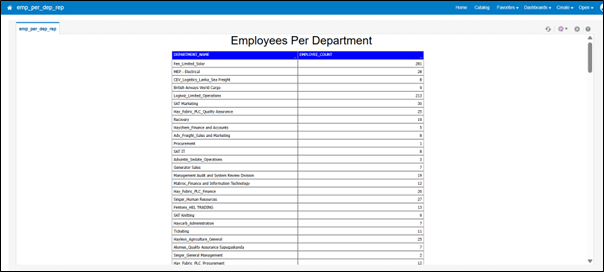

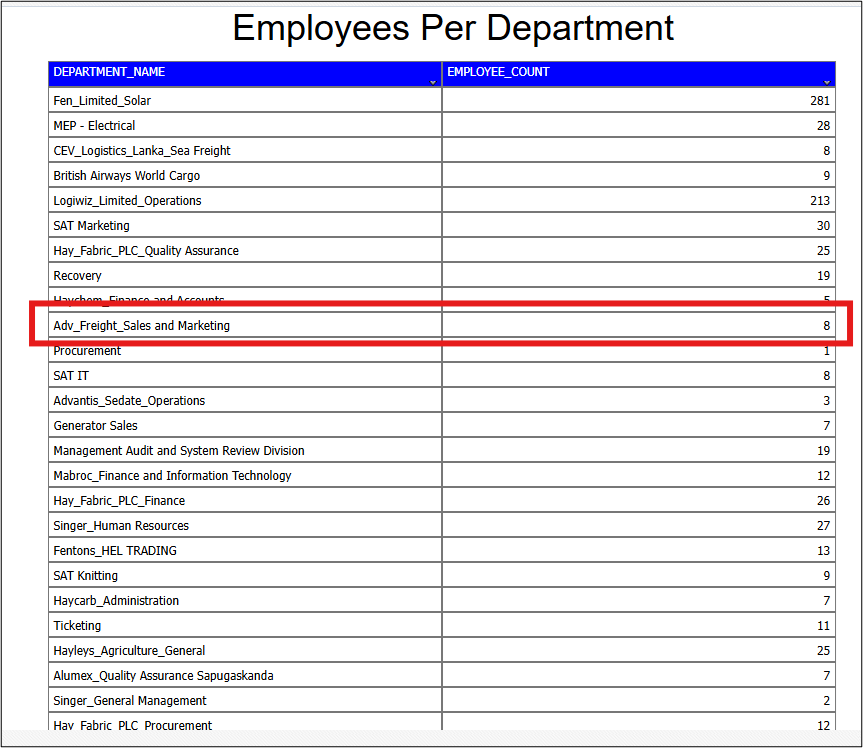

Parent Report

Example:

Adv_Freight_Sales and Marketing Department – 8 Employees

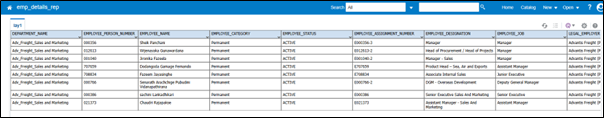

Child Report

The report shows employee records only for the selected department.




Implementation Best Practices

Several implementation details significantly impact drill-down reliability.

Parameter Consistency

Parameter names must match exactly between:

  • URL configuration
  • Child report parameter
  • SQL filter

Even minor mismatches prevent filtering from working.



Interactive Output for BI Publisher

Clickable drill-down links only function when the report output format is Interactive.

Static outputs such as PDF or Excel will not support navigation.



Effective-Date Accuracy

Employee reports must use proper effective-date joins.

Incorrect joins can produce inconsistent results where the summary count does not match the detail report.



Why Drill-Down Reporting Matters

Well-designed drill-down reports transform static workforce reporting into interactive analysis.

Instead of generating multiple reports or applying filters repeatedly, users can move seamlessly between:

  • Executive-level metrics
  • Operational employee data

This approach improves investigation speed, reduces reporting friction, and enables HR teams to identify workforce insights faster.



Key Takeaways

  • OTBI drill-down is implemented using Action Links and Presentation Variables.
  • BI Publisher drill-down uses URL-based parameter navigation.
  • Child reports must be designed to accept dynamic filtering parameters.
  • Interactive output is mandatory for BI Publisher navigation.
  • Correct effective-date logic ensures summary and detail reports remain consistent.





Author –  Yash Ingle – Oracle HCM Consultant
